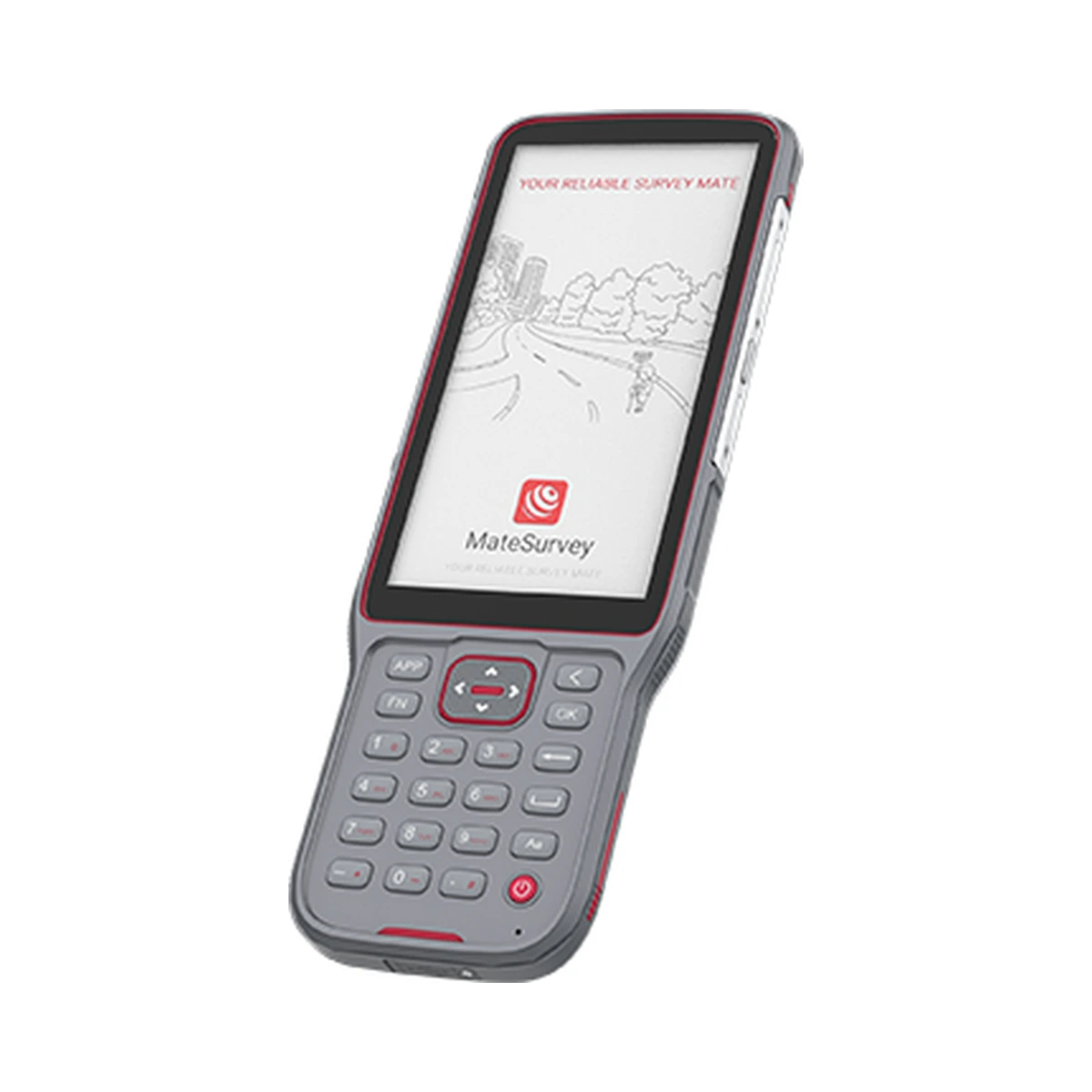

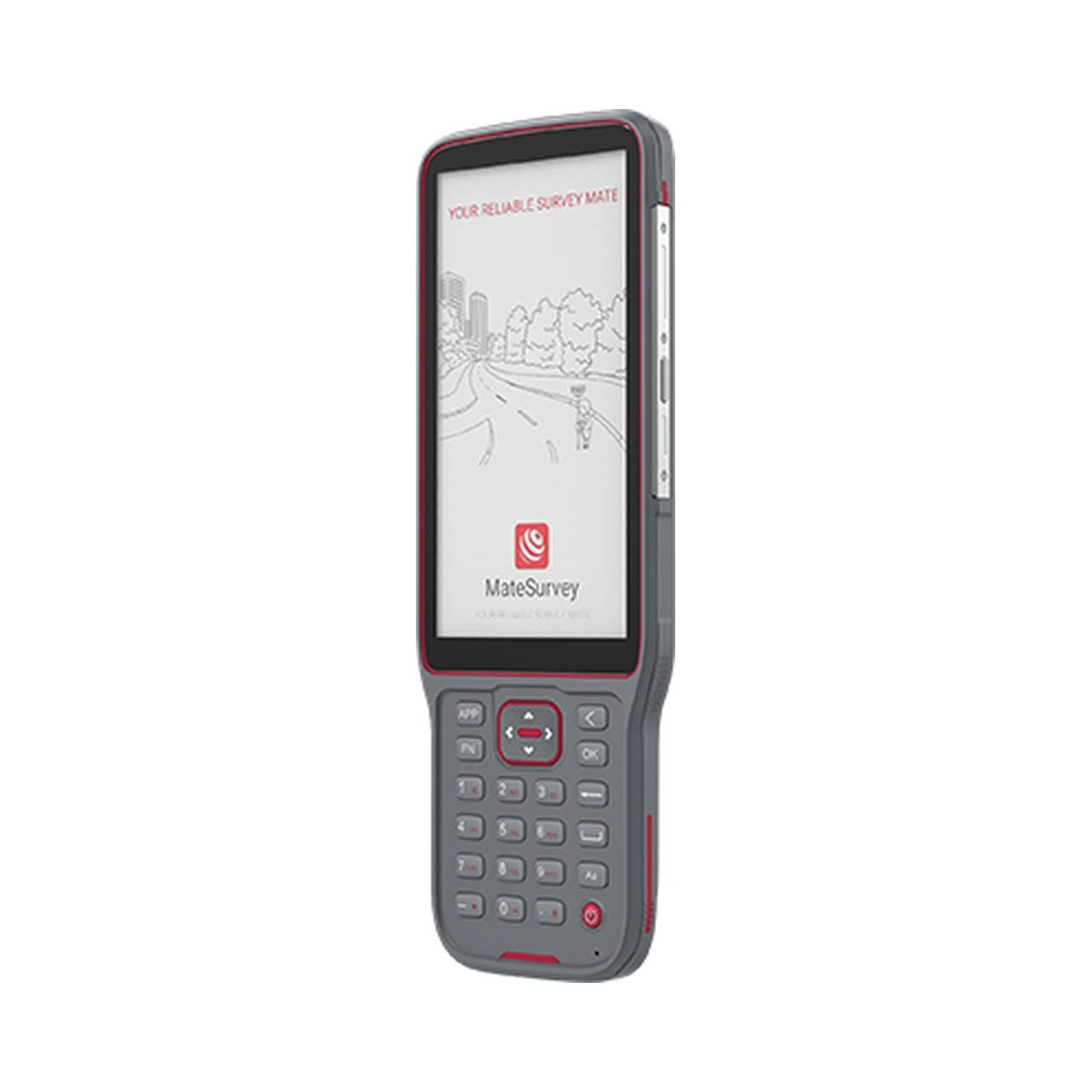

GeoMate FC2 Field Controller

RUGGED FIELD DATA CONTROLLER

Professional handheld field controller powered by Android 10, featuring a 5.5-inch sunlight-readable HD+ multi-touch display, full physical alphanumeric keypad, 8000 mAh all-day battery, and pre-installed MateSurvey software.

TURNKEY RTK SYSTEM AVAILABLESupplied standard with the turnkey GeoMate Complete RTK System.

View Complete RTK System

Operating SystemAndroid 10.0 with Google Mobile Services (GMS)

ProcessorHelio Octa-core 2.0 GHz high-performance processor

Discuss on WhatsApp

Configuration, availability and delivery confirmed with your quotation.

View in the AFFORDA catalogue

01 / FIELD CAPABILITIES

Built for the task.

5.5-inch sunlight-readable HD+ multi-touch screen operable in torrential rain, bright direct sunlight, and with heavy survey gloves
Full alphanumeric physical keypad provides tactile, positive feedback for high-speed coordinate entry and field coding without mis-touches
8,000 mAh high-capacity battery delivers over 14 hours of continuous RTK network surveying and screen-on time
Pre-installed MateSurvey software offers comprehensive field surveying modules: topographic survey, CAD stakeout, road design, curve calculation, and GIS attribute collection
Seamless compatibility with GeoMate GBASE, SG6L, and other NMEA-compatible GNSS and total station instruments via Bluetooth and Wi-Fi
IP68 and MIL-STD-810H military-grade rugged enclosure resists water submersion, heavy dust ingress, and accidental drops on rocky terrain
Dual 4G Nano-SIM slots provide rock-solid internet connection for CORS / NTRIP networks and instant cloud project sync

02 / TECHNICAL DETAILS

Precision, specified.

Operating System: Android 10.0 with Google Mobile Services (GMS)
Processor: Helio Octa-core 2.0 GHz high-performance processor
Memory & Storage: 4 GB RAM + 64 GB ROM (expandable up to 128 GB via microSD)
Display: 5.5-inch IPS HD+ (1440 × 720) sunlight-readable capacitive touch screen (supports wet hand / glove mode)
Keypad: Full physical alphanumeric keypad with customizable shortcut keys and dedicated survey buttons
Battery & Runtime: 8000 mAh rechargeable Li-ion battery providing up to 14+ hours continuous surveying
Charging: USB Type-C with PE+ 2.0 fast charging (≤ 4 hours full charge)
Wireless Connectivity: 4G LTE dual-SIM dual-standby, Wi-Fi 802.11 a/b/g/n/ac (2.4/5 GHz), Bluetooth 5.0, NFC
GNSS Chipset: Internal GPS, GLONASS, BeiDou, Galileo receiver for autonomous GIS positioning
Integrated Camera: 13 MP rear camera with autofocus and flash + 5 MP front camera
Field Software: GeoMate MateSurvey professional field software pre-installed (CAD, stakeout, COGO, roading)
Durability Rating: IP68 waterproof and dustproof, MIL-STD-810H compliant, 1.5 m drop onto concrete
Weight & Dimensions: 225 mm × 80 mm × 23 mm | 460 g (with battery)
Operating Temperature: -30°C to +60°C
