01 / 02HIKMICRO

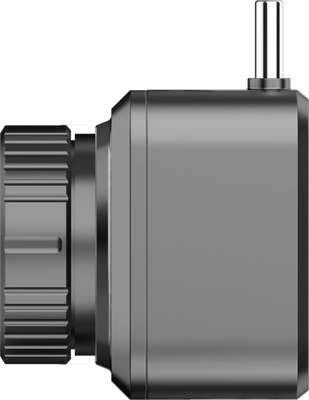

E20 Plus
SMARTPHONE THERMAL CAMERAA lightweight thermal accessory for compatible Android phones, with USB-C connection and HIKMICRO Sight app support.
ConnectionUSB Type-C (Android OS)
Detector Resolution256 × 192 (12 μm VOx)
Configuration, availability and delivery confirmed with your quotation.
01 / FIELD CAPABILITIES
Built for the task.
- Compact thermal module for mobile observation
- Powered through the connected device with smooth 50 Hz frame rate
- HIKMICRO Sight app compatibility for real-time radiometric temperature analysis
- Ultralight 26 g pocket form factor for instant mobile reconnaissance
02 / TECHNICAL DETAILS
Precision, specified.
- Connection
- USB Type-C (Android OS)
- Detector Resolution
- 256 × 192 (12 μm VOx)
- Thermal Sensitivity
- NETD < 50 mK (@25°C, F#=1.0)
- Frame Rate
- 50 Hz real-time thermal video
- Focal Length
- 9.7 mm (F1.0)
- Field of View
- 18.1° × 13.6°
- Detection Range
- Up to 970 m
- Power Consumption
- 360 mW (Direct host device power)
- Weight
- 26 g (0.92 oz)
- Operating Temperature
- −10°C to 50°C
- Protection Level
- IP40
Key specifications and field-use details. Exact configuration may vary by model or selected variant.
